Race headers

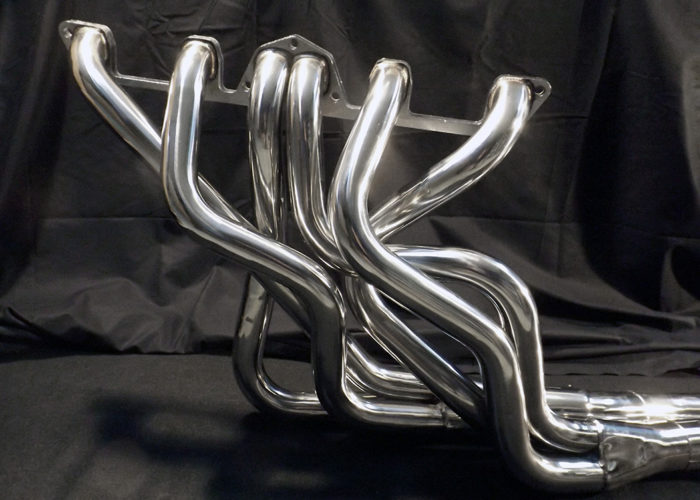

Based upon the North American ‘NISMO’ header, which was originally conceived to fit left-hand-drive* S30s in the absence of suitable parts from Japan (RHD and S20 powered cars), Zstory has redesigned and improved it to fit all left-hand drive* models.

Zstory has continually strived to evolve the manifold to fulfill modern-day customer demands ; it is made from 201 (austenitic)1.25mm stainless-steel for its own protection and longevity, with less pipe welds and a thicker flange specifically trimmed to fit all heads and blocks.

The 6-2 configuration is generally accepted as being the most suitable for the widest range of engine applications. Zstory has further developed that conception with the 2-1 joining as far back as possible before the first silencer.

The Y-pipe (2-1) collector has a built-in lambda sensor plug and bung to allow accurate engine testing and real-time surveillance and finishes with a V-band clamp fitting for leak-free and easy mounting/disassembly.

The manifold itself has equal-length primary pipes with an internal diameter of 40mm. It is important to stress the internal diameter of the pipes because the earlier, cast-iron versions were measured externally and had thicker piping!

Tech
infos

click to deploy

Originating in competition and now also meeting the demands from the growing popularity of stroker and prepared street/road engines, typical uses of this manifold are:

– Circuit and other competition prepared L26s and L28s,
– Wild-street / fast-road L28s and mild strokers.

The mid-bore, primary and secondary pipes evacuate the exhaust gases and particles with a high-flow velocity rate which permits a quick throttle response and good torque throughout the low-to-mid power-band range which is essentiel for the small to mid engine sizes.

The equal-length primary pipes matched to a long 2-1 collector pipe, recreate a correct back-pressure (or scavenging effect**) to ensure an excellent exhaust flow but also an efficient inlet performance!

Seperate pipe-work to allow partial dismantling for:
– easier initial fitting,
– easier servicing under the car – clutch, gearbox and differential,
– the replacement of any pipework due to accident damage, especially competition and lowered-street cars,
– less expensive expedition to clients as packing is more compact.

⇒ Solid T-bolt and V-band clamps for a secure and leak-proof exhaust line.
⇒ A thick flange for the fitting with all inlet manifold types.
⇒ Stainless-steel ensures a long life – fit and forget!
⇒ Complete kit – all included for home fitting.

Equal-length 6-2 primary pipes and rectangular ports.

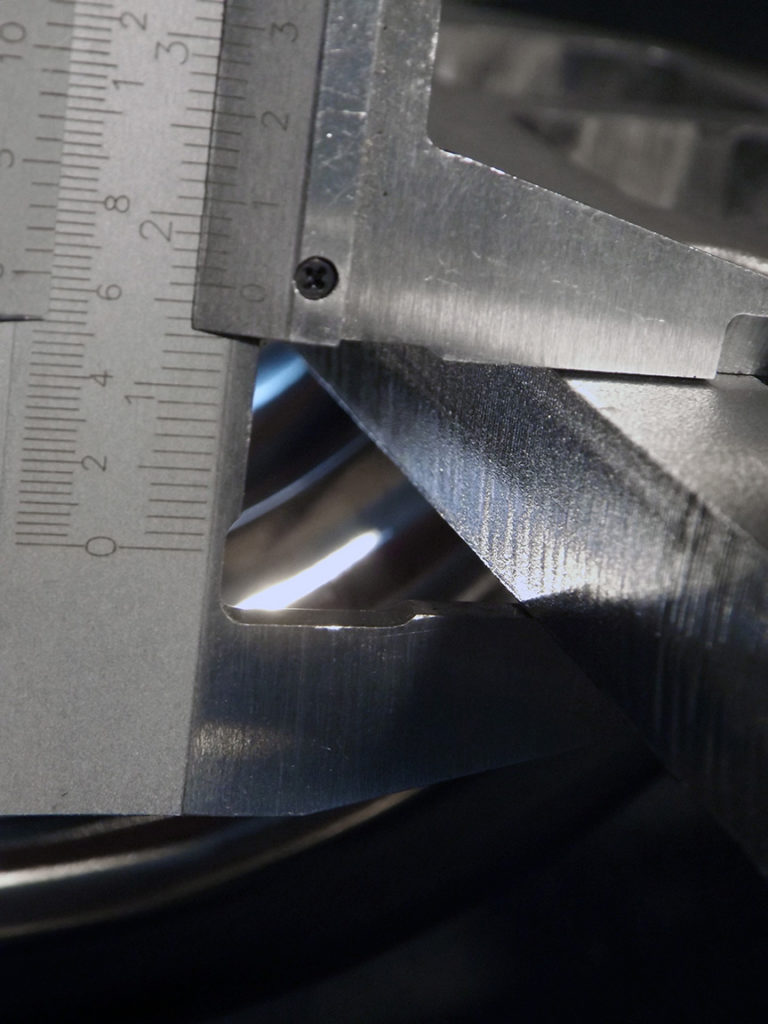

⇒ The flange thickness is 15mm
⇒ The height of the manifold ports is 38mm
⇒ The width of the two inner ports is 35mm
⇒ The width of the 4x outer ports is 29mm
⇒ Primary pipes (42mm internal diameter) leading to 2x equal length secondary pipes of 60mm internal diameter each.
⇒ Single secondary end-pipe of 63mm fits directly onto the common exhaust line of 63mm (2.5’’).
⇒ Primary pipes = 920mm long, joining of each 3-1 at 700mm
⇒ Secondary pipe = two lengths of 680mm and 500mm
⇒ Overall length from engine head to single exhaust pipe = 1m40cm

It works with each and with twin SU use has been successful using either the standard 1 ¾’’ 240Z carbs and the big-bore (Jaguar/Rover) 2’’ versions.

Generally, it fits easier with the better quality triple inlet manifolds.

Bigger-bore primary pipes and exhaust line bore are not necessarily better – a manifold and line ought to be ‘tuned’ to your engine’s needs.

*this manifold is therefore now suitable for LH and RH drive S30s.
**read more of that later in the specific section on this website!

I recommend that you consult with me before deciding – what are your expectations and why I have 3x versions to choose from!

Track-Day: the Street but straight-through.
Don’t forget to look at the rear silencer pages to choose yours and please don’t hesitate to contact me for advice.
